What is the purpose of Koehler illumination

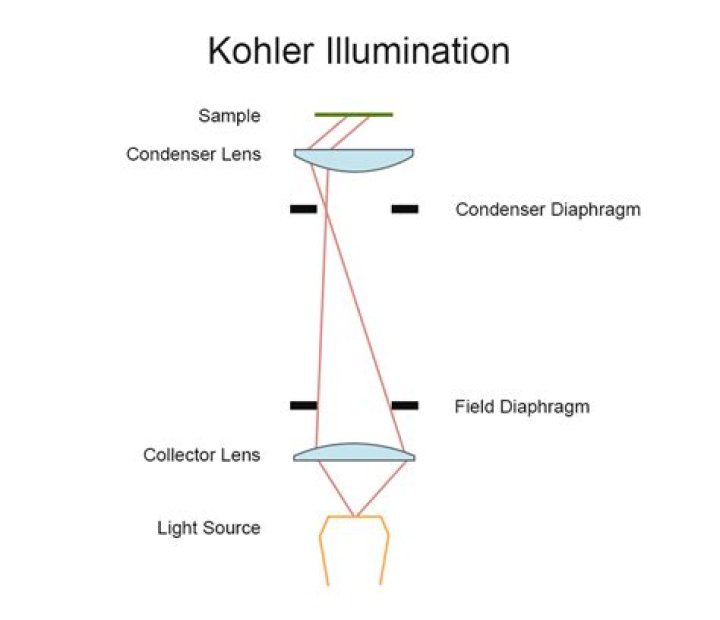

Koehler Illumination is a process that provides optimum contrast and resolution by focusing and centring the light path and spreading it evenly over the field of view. Sophisticated and well-equipped microscopes fail to yield quality images because of incorrect use of the light source.

What are the advantages of Köhler illumination?

The primary advantage of Köhler illumination is the uniform illumination of the sample. This reduces image artifacts and provides high sample contrast. Uniform illumination of the sample is also critical for advanced illumination techniques such as phase contrast and differential interference contrast microscopy.

What is the purpose of the substage illuminator light?

The substage condenser gathers light from the microscope light source and concentrates it into a cone of light that illuminates the specimen with uniform intensity over the entire viewfield.

What is the purpose of critical illumination?

Critical illumination or Nelsonian illumination is a method of specimen illumination used for transmitted and reflected light (trans- and epi-illuminated) optical microscopy. Critical illumination focuses an image of a light source on to the specimen for bright illumination.

Does Köhler illumination increase magnification?

Optical illumination for most specimens is called Kohler Illumination. Once a given selection of optics is in place, Kohler illumination cannot affect magnification, but it does affect resolution and contrast.

What is the most critical step in Kohler illumination?

The aperture diaphragm is opened and closed with either a swinging arm, a lever, or by rotating a collar on the condenser housing. It should be noted that correct adjustment of the substage condenser is probably the most critical aspect of achieving proper Köhler illumination.

How do you use Koehler illumination?

1. You will need a specimen to perform this, so grab a slide. …
2. Switch on the microscope.
3. Use the 10x objective lens (20x if necessary). …
4. Place your slide on the microscope stage. …
5. Close down the condenser diaphragm (rotate it fully anti-clockwise).

What is purpose of condenser in a microscope?

On upright microscopes, the condenser is located beneath the stage and serves to gather wavefronts from the microscope light source and concentrate them into a cone of light that illuminates the specimen with uniform intensity over the entire viewfield.

What is the role of illuminated field and aperture diaphragm?

Sometimes referred to as double diaphragm illumination, it uses both a field and an aperture diaphragm to focus the illumination and provides an evenly illuminated viewing field, a bright specimen image and eliminates glare.

What is illumination microscope?

The illumination system of the standard optical microscope is designed to transmit light through a translucent object for viewing. … Typically, the condenser focuses the image of the light source directly onto the plane of the specimen, a technique called critical illumination.

Article first time published on

What is the function of the iris diaphragm The substage condenser?

What is the function of the iris diaphragm? The substage condenser? The iris diaphragm controls the amount of light passing through the slide or specimen, while the substage condenser focuses a cone of light on the slice or specimen.

What is the role of condenser and iris diaphragm in critical illumination?

The condenser concentrates and controls the light that passes through the specimen prior to entering the objective. It has two controls, one which moves the Abbe condenser closer to or further from the stage, and another, the iris diaphragm, which controls the diameter of the beam of light.

What is dark field illumination?

Darkfield illumination is a technique in optical microscopy that eliminates scattered light from the sample image. This yields an image with a dark background around the specimen, and is essentially the complete opposite of the brightfield illumination technique.

How do you increase illumination on a microscope?

#1 – Microscope Rheostat The microscope rheostat control can be found on the side of the compound microscope body. It will typically be a knob that is turned clockwise in order to increase the light intensity, or counter-clockwise to reduce the light.

Who invented Köhler illumination?

August Köhler, a German scientist and expert microscopist born in 1866, is best known for his development of the superior microscope illumination technique bearing his name (Köhler illumination) and which is still in general use today.

How do you focus a condenser?

1. Rotate the condenser centering knob to center the condenser. …
2. Rotate the field diaphragm dial and adjust the image’s size so that the diaphragm image circumscribes the field of view.

What do you expect to happen to the working distance between the slide and the objective lens?

The working distance is the distance between the specimen and objective lens. The working distance decreases as you increase magnification. The high power objective lens has to be much closer to the specimen than the low-power objective lens in order to focus.

Is the image always best with highest illumination?

Is the image always best with highest illumination? … Higher illumination is better for high power and lower illumination is better for lower power.

What is oblique illumination?

Oblique illumination is a technique whereby light is projected at the specimen from a sideways, slanting angle to reveal features with higher contrast as compared to when viewed with brightfield illumination.

Why does the 100x objective need oil?

The 100x lens is immersed in a drop of oil placed on the slide in order to eliminate any air gaps and lossof light due to refraction (bending of the light) as the light passes from glass (slide) → air →​​​​​​​ glass (objective lens).

Why do you use oil on a slide to be examined with the oil immersion objective?

It is best to use an oil-immersed objective at high magnification as the oil compensates for short focal lengths associated with larger magnifications. … Oil is an ideal conduit in the preparation of slides because the refractive index is the same or similar as glass.

What is the function of the condenser on a microscope quizlet?

The purpose of the condenser lens is to focus the light onto the specimen. Used to vary the intensity and size of the cone of light that is projected upward into the slide.

Can you use microscope without condenser?

When you first start out using a microscope, or in the routine examination of slides, you might only adjust the eye pieces, objectives, and the focus controls. However, you shouldn’t overlook the microscope condensers as they are an important (if not essential) part of the whole optical system of a microscope.

What is a condenser in science?

In chemistry, a condenser is laboratory apparatus used to condense vapors — that is, turn them into liquids — by cooling them down. … The simplest and oldest condenser is just a long tube through which the vapors are directed, with the outside air providing the cooling.

What is source of illumination in electron microscope?

The organization of the transmission electron microscope (TEM) is similar to that of the light microscope. The illumination source (or electron gun) in a thermo-ionic emission TEM works much like a light bulb. A filament (cathode) is the source of electrons. It is usually a hairpin-shaped tungsten wire.

What is the importance of light in the use of microscope?

It helps to magnify the small object to 1000* times than the real size of the real object. In light microscope light ray is send and it travel as a beam through the specimen and then through the lenses finally producing a magnified image.

What are the illuminating magnifying and mechanical parts of the microscope?

Mechanical part – base, c-shaped arm and stage. Magnifying part – objective lens and ocular lens. Illuminating part – sub stage condenser, iris diaphragm, light source.

What is the difference between the condenser and the iris diaphragm?

Condenser is used to collect and focus the light from the illuminator on to the specimen. … Iris Diaphragm controls the amount of light reaching the specimen. It is located above the condenser and below the stage.

What is the function of the diaphragm in a compound microscope?

The field diaphragm controls how much light enters the substage condenser and, consequently, the rest of the microscope.

What is aperture diaphragm?

The second adjustable iris diaphragm in an optical system. When the aperture diaphragm is adjusted, the intensity of the light and the angle of the cone of light entering the objective are varied. … Also refers to the iris in a camera lens.

What is the function of the iris diaphragm to what part of the human eye would you compare it?

The iris of the eye functions like the diaphragm of a camera, controlling the amount of light reaching the back of the eye by automatically adjusting the size of the pupil (aperture). The eye’s crystalline lens is located directly behind the pupil and further focuses light.
