What is the maximum thickness that can be welded in ultrasonic welding

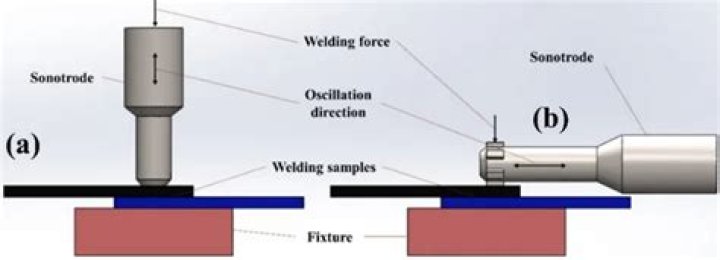

The maximum thickness can be that can be welded is 2.5mm. 7. Electric currents are passed is ultrasonic welding. Explanation: In ultrasonic welding method, the parts which are to be joined, are kept clamping to one another in between of supporting member and the welding tip.
Which type of weld is done by ultrasonic welding?
Ultrasonic welding is an industrial process whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld.
What is the disadvantage of ultrasonic welding?
A limitation of ultrasonic welding is that with current technology, large joints cannot be welded in a single operation. In addition, specifically designed joint details are required. Ultrasonic vibrations can also damage electrical components, although the use of higher frequency equipment can reduce this damage.
What is the maximum frequency used in ultrasonic welding Mcq?
2. What is the maximum frequency used in the ultrasonic inspection? Explanation: The maximum frequency that may be needed for an ultrasonic inspection is around 50 MHz.What is ultrasonic welding for plastic?
Ultrasonic plastic welding is the joining or reforming of thermoplastics through the use of heat generated from high-frequency mechanical motion. It is accomplished by converting high-frequency electrical energy into high-frequency mechanical motion.
Under what frequency ultrasonic welding is done?
The vibrations, produced by a welding sonotrode or horn, as it is generally known, are used to soften or melt the thermoplastic material at the joint line. The components to be joined are held together under pressure and subjected to vibrations, usually at a frequency of 20 or 40 kHz.
What is the minimum thickness that can be welded in ultrasonic welding?
In doing this, no current is required to be passed through the metal, and usually, no heat is needed for this too. 8. What is the minimum thickness that can be welded in ultrasonic welding? Explanation: None.
What is the wavelength of ultrasonic waves?
Ultrasound is defined by the American National Standards Institute as “sound at frequencies greater than 20 kHz”. In air at atmospheric pressure, ultrasonic waves have wavelengths of 1.9 cm or less.For what thickness of a material in an oxy acetylene is a welding rod used?
Explanation: Oxy-acetylene processes are mainly used for the joining of metal sheets or for joining metal plates which are having a thickness of 2mm to 50mm. When the thickness of the material is more than 15 mm, an additional filler metal is added like a welding rod.
How does ultrasonic weld testing work?- An ultrasonic gauge transmits a beam of high-frequency ultrasonic energy into the component or material.
- The ultrasonic beam penetrates the entirety of the component or material.
- Then, two audible signals result from the gauge, alerting the tester.
Is ultrasonic welding safe?
Using ultrasonic welding equipment is extremely safe, and vastly superior to other forms of bonding technology in this area. Because the ultrasonic waves are focused on the welded product only, there is little chance of anything dangerous happening.
Is ultrasonic welding expensive?
High investment: Basic ultrasonic welding equipment is significantly more expensive than traditional welding equipment, and the costs only increase with the introduction of automation.
Can you Sonic Weld TPU?
There are a number of ways in which polycarbonate and thermoplastic polyurethane films can be effectively joined. These include ultrasonic welding, heat sealing, high frequency welding, laser welding and impulse welding.
How much does ultrasonic welding cost?
Ultrasonic welders cost anywhere from $18,000 to $45,000, depending on power capacity and bells and whistles, such as statistical process control packages. A basic 20-kilohertz, 2.5- to 3.5-kilowatt ultrasonic metal welding system can be acquired for around $30,000.
What type of plastic can be welded?
You can weld many plastics such as Polypropylene, High Density Polyethylene (HDPE), PVC, CPVC, ABS and even Lexan or polycarbonate together using several basic welding techniques.
How thick can you spot weld?
Spot welding is primarily used for joining parts that are normally up to 3 mm in thickness. Thickness of the parts to be welded should be equal or the ratio of thickness should be less than 3:1. The strength of the joint depends on the number and size of the welds. Spot-weld diameters range from 3 mm to 12.5 mm.
Which of the following can be easily be welded from flash butt welding process?
2. Which of the following can be easily be welded from flash butt welding process? Explanation: In flash butt welding process, the welding of materials like steels and other iron alloys are easy to weld, except for cast iron.
What is the temperature needed for preheating in cast irons?
Preheat pieces to at least 250°F prior to welds with cast iron or copper electrodes. Nickel electrodes can be used without a preheat. Stick welding uses different types of electrodes depending on the application, color match, and amount of machining required after welding.
How is energy required for ultrasonic welding calculated?
The power required for ultrasonic welding: P=F*V, where F is clamping force, V is sonotrode vibration velocity. … So P=Pc*A*Pi*f*D, and power required for a ultrasonic welding will be determined by clamping pressure, welding area, ultrasonic frequency and vibration amplitude.
What is the difference between ultrasonic welding and vibration welding?
The vibration welding process vibrates one component relative to another in a linear side-to-side motion. … The friction between the two objects generates the heat used for welding. Conversely, the ultrasonic welding process vibrates one component perpendicularly to another much like a jackhammer on pavement.
What does ultrasonic waves carry more?
Answer is “both frequency and energy“
What is difference between arc welding and gas welding?
The primary difference between Arc Welding and Gas Welding is that Arc Welding uses electricity while Gas Welding uses flammable gases for generating heat. Also, Arc Welding generates higher temperatures as against Gas Welding. Arc Welding uses electricity for generating heat to weld metals together.
What is the material of the electrode in spot welding?
The electrodes generally are made of a low resistance alloy, usually copper, and are designed in many different shapes and sizes depending on the application needed. The two materials being welded together are known as the workpieces and must conduct electricity.
What is the maximum temperature developed by the gas welding?
Welding is done using the flame in this zone. It decides the nature of the flame-reducing, carburizing or oxidizing. The flame temperature depends on the oxygen to acetylene ratio and increases with increase in this ratio upto a certain point.
What are 4 uses of ultrasound?
- heart and blood vessels, including the abdominal aorta and its major branches.
- liver.
- gallbladder.
- spleen.
- pancreas.
- kidneys.
- bladder.
- uterus, ovaries, and unborn child (fetus) in pregnant patients.
What is the frequency range of ultrasonic?
Sounds with a frequency of 20 kHz and higher are referred to as ultrasound (or ultrasonic sound). High frequency sound is sound of which the frequency lies between 8 and 20 kHz. High frequency sound with a frequency over 16 kHz can hardly be heard, but it is not completely inaudible.
What is the range of ultrasonic vibration?
ultrasonics, vibrations of frequencies greater than the upper limit of the audible range for humans—that is, greater than about 20 kilohertz. The term sonic is applied to ultrasound waves of very high amplitudes.
What is the major limitation of sonic testing?
Limitations. There are, however, a few limitations to ultrasonic testing, as follows: Requires experienced technicians for inspection and for data interpretation. False positive results, also known as spurious signals, may result from tolerable anomalies as well as the component geometry itself.
What is DAC curve in UT?
DAC – Distance Amplitude Curve – is a method of compensating for the fact that the pulse-echo response of a reflector will decrease as the distance of the reflector from the ultrasonic probe increases. … BS EN ISO 16811:2014 Non-destructive testing – Ultrasonic testing – Sensitivity and range setting.
What is Mt Weld inspection?
Magnetic particle inspection (MT) is a non-destructive testing method used to detect surface and slightly subsurface flaws in ferromagnetic materials (such as carbon steel). It is used routinely to inspect welds, piping, pressure vessels and structural steel components.
What is Sonic Weld?
Ultrasonic bonding, also known as sonic welding, is a process in which high-frequency (ultrasonic) sound waves are applied to two or more workpieces that are being held together under pressure to fuse them into a single piece.
