How do I reset my magnum alert alarm?
How do I reset my magnum alert alarm?

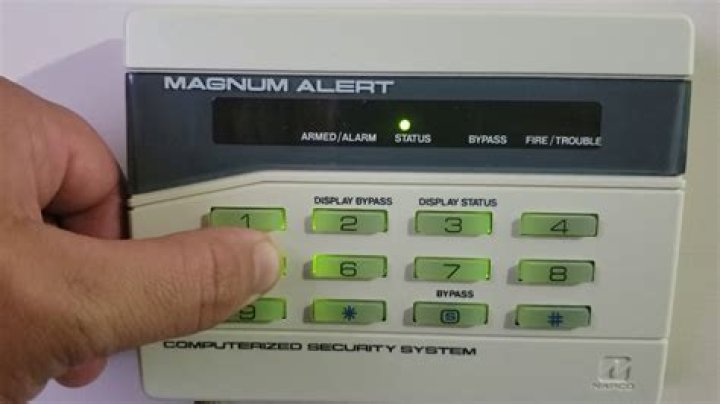

To reset the display, hold down Key [9]. When the system is disarmed, the red ARMED/ALARM light will go off and the green light will come on (or flash if a zone is in trouble).
How do you bypass a Napco Alarm?
To Bypass an Individual Zone when Arming: Press the BYPASS key and then the zone # you want to bypass (2 digits, i.e. Zone 2 is 02, zone 11 is 11) then enter your code followed by the ON/OFF key. The zones will go back to normal when you disarm the system.
How do you get a Gemini keypad off the wall?
Remove the front of the keypad housing: Insert a screwdriver into the two (2) slots located in the bottom of the keypad. Twist the screwdriver to detach the front of the key- pad housing. With keypad base secured to the wall, solder or crimp bus wires to the keypad connector plug using the wiring diagram as a guide.
How do I stop my Gemini alarm from beeping?
On the Napco and Gemini keypads, you can press the FUNCTION key until it says “display system trouble” then press the on/off key. On the Magnum Alert keypads, holding down the #9 key for a few seconds will stop the beeping.
How do you silence a Gemini Security system?
To Reset System: To clear the alarm memory from the keypad press the reset button. Pressing the reset button also resets smoke detectors and silences any system troubles. To Silence an Alarm: Enter your code and press the on/off button. Ambush: Press the 2-digit code then enter your code then the on/off button.
How do I get rid of my old security system?
How to Safely Remove a Wired Security System
- Contact the alarm company. You will want to contact your alarm company if your system is connected to a monitoring service.
- Disconnect the sirens.
- Pull off control panels.
- Remove old battery packs.
- Remove other components.
- What to do with the wiring.
- Contact Brinks Home Security®
How did the Napco Security system get its name?
Many people may know the Napco alarm name from the Magnum Alert series of alarm panels. Although they’re now long out-of-production, these were some of the most popular systems in the 1980’s, during my early days of installing alarms.
Where can I find a NAPCO alarm manual?
To find a Napco alarm systems user manual, alarm installation manual, or programming guide, check out my alarm system manual sources page. To see some of the latest Napco Security products, visit the Napco Security Technologies website. To find out how much it would cost to replace your old Napco security system, just fill out the form below.
What kind of chips are in NAPCO Magnum alert?
The Napco Magnum Alert line are microprocessor-based residential burglary and fire panels. They all use removable PROM chips (Programmable Read Only Memory) to hold the basic programming information. They also need 10-conductor cable to run the keypads!
Where can I get a new NAPCO keypad?
You may come off much easier and cheaper to get a new alarm system and keypad (s) from a similar, but more DIY friendly line, like a Vista-20p. Or you can look into the Napco Gemini P816 or P801 or P800 all of which can be programmed from the keypad in less than 15 minutes (worst case) with no previous experience.
Many people may know the Napco alarm name from the Magnum Alert series of alarm panels. Although they’re now long out-of-production, these were some of the most popular systems in the 1980’s, during my early days of installing alarms.
To find a Napco alarm systems user manual, alarm installation manual, or programming guide, check out my alarm system manual sources page. To see some of the latest Napco Security products, visit the Napco Security Technologies website. To find out how much it would cost to replace your old Napco security system, just fill out the form below.
The Napco Magnum Alert line are microprocessor-based residential burglary and fire panels. They all use removable PROM chips (Programmable Read Only Memory) to hold the basic programming information. They also need 10-conductor cable to run the keypads!
You may come off much easier and cheaper to get a new alarm system and keypad (s) from a similar, but more DIY friendly line, like a Vista-20p. Or you can look into the Napco Gemini P816 or P801 or P800 all of which can be programmed from the keypad in less than 15 minutes (worst case) with no previous experience.
