Can an expansion tank be installed on the hot water side?

Although expansion tanks can be installed on the hot side, we strongly recommend they be installed on the cold line, downstream of the shutoff valve.

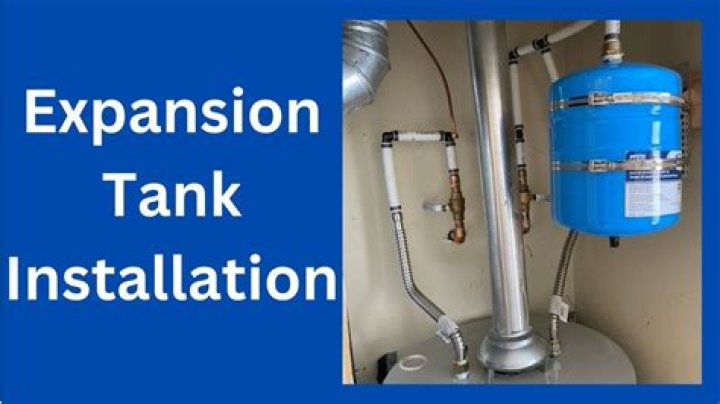

Where do you put the expansion tank on a hot water heater?

An expansion tank is generally installed directly above the water heater by means of a tee-fitting installed in the cold water delivery pipe. The expansion tank is usually installed horizontally, though it is acceptable to install it vertically if it is necessary because of space limitations.

Does expansion tank affect water pressure?

When the system’s water is heated and expands into the tank, the diaphragm deforms and moves toward the captive air chamber. The air pressure in the tank increases and so does the water pressure in the system.

How do I know if my hot water expansion tank is bad?

How do I know if my boiler expansion tank is bad?

Tap on the tank. It should be hollow about half way up.
Check the temperature by feeling the top and bottom of the tank.
Use an air gauge to check the pressure inside the tank.
Check to see if your release valve is spurting water.

How do you know if the expansion tank is bad?

You can also check your expansion tank’s pre-charge pressure by knocking on the side of the tank with your knuckles to determine if it’s full of air or water. Pre-charge pressure that’s too low may be indicated when the tank is full of water. Low pressure can cause too much water from entering the tank.

How does an expansion tank in a hot water tank work?

As previously mentioned, an unvented cylinder needs an expansion tank. An expansion tank is used to prevent pressure increases as the water heats and expands. As water is heated, it can increase in volume by up to four per cent. The expansion tank can absorb this extra water volume so that the pressure doesn’t build up in the system.

How can I tell if my expansion tank needs to be replaced?

If the pre-charge pressure is less than your home’s water pressure, a higher level of water will make its way into the expansion tank, which can damage the diaphragm over time. You can check your water’s pressure by using a water pressure gauge and attaching it to the drain valve of your water heater.

What happens if your hot water tank is on the hot side?

If the expansion tank is on the hot side, then the next time someone uses hot water, the now cooled water will come out of the expansion tank and head for the open faucet before fresh hot water from the heater tank gets up there, This lengthens the time and increases the water waste waiting for the water to get hot.

What can cause an expansion tank to explode?

This buildup can block the valve, which may cause an explosion. Excessive water pressure buildup can cause non-leaking valves to pop, leading to heavy water spillage.

How does an expansion tank on a water heater work?

You install the expansion tank down the line from the inlet valve that sends hot water into your home. The tank has two sections that are separated by a rubber valve.

What happens when an expansion tank becomes waterlogged?

In normal use the expansion tank on a hot water heating system is never full – so the bottom of the tank gets hot but the upper tank, wher there should be air, stays cooler. If the tank becomes waterlogged – loses its air charge – then we’ll see dripping or discharge at the boiler temperature/pressure relief valve.

Can a diaphragm expansion tank increase water pressure?

The air pressure in the tank increases and so does the water pressure in the system. However, if the tank is properly sized, the increase in system pressure is not enough to cause the pressure relief valve to open, even when all the water in the system reaches its maximum temperature. Diaphragm expansion tanks can be sized using charts or software.
